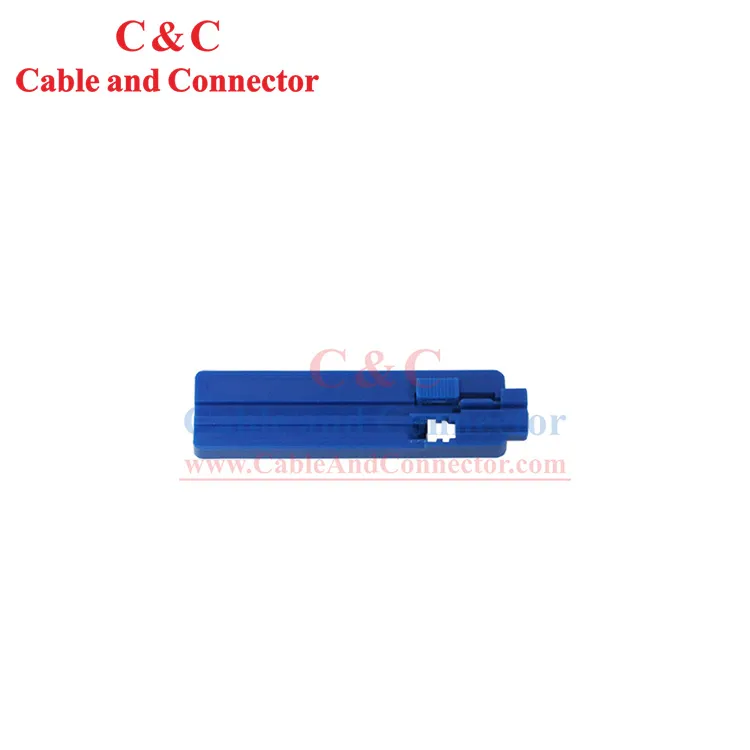

Fiber Quick Connector, Optical Fiber Fast Connector Fast Connectors are designed to simplify the process of connecting optical fibers, making it quicker and easier compared to traditional methods that involve manual polishing and epoxy curing. These connectors often use pre-polished ferrules and mechanical alignment techniques to achieve low insertion loss and low reflectance. The design of Fast Connectors minimizes the need for specialized tools and expertise, which can be especially useful in field installations and situations where speed is important, LC/UPC Fast Connector (CC-FCLU-920H), suitable for: Ф3.0 mm & Ф2.0 mm Cable, Fiber Diameter: 125μm (652 & 657), Coating Diameter: 900μm, Mode: SM, Insertion Loss: about 4min (exclude fiber presetting), Return Loss: ≥50dB, Tighten Strength of Bare Fiber: >3N, Tensile Strength: >30N/2 nóim.
Sonraíocht
|
Mír |
Sonraíocht |
|
Scóip Cábla |
Ф3.0 mm & Ф2.0 mm Cábla |
|
Trastomhas Snáithín |
125μm (652 & 657) |
|
Trastomhas Cumhdach |
900μm |
|
Mód |
FBManna |
|
Am Oibriúcháin |
thart ar 4 nóiméad (seachas réamhshocrú snáithíní) |
|
Caillteanas Ionsáigh |
Níos lú ná nó cothrom le {{0}}.3 dB (1310nm & 1550nm), Uasmhéid Níos lú ná nó cothrom le 0.5 dB |
|
Caillteanas Tuairisceán |
Níos mó ná nó cothrom le 50dB do UPC |
|
Ráta Ratha |
>98% |
|
Amanna Ath-inúsáidte |
Níos mó ná nó cothrom le 10 n-uaire |
|
Neart Snáithín Lom níos doichte |
>3N |
|
Neart Teanntachta |
>30N/2 nóim |
|
Teocht |
-40-+85 céim |
|
Tástáil Neart Teanntachta Ar Líne (20 N) |
△ IL Níos lú ná nó cothrom le 0.3dB |
|
Marthanacht Mheicniúil (500 uair) |
△ IL Níos lú ná nó cothrom le 0.3dB |
|
Tástáil Buail (urlár coincréite 4m, uair amháin gach treo, trí huaire san iomlán) |
△ IL Níos lú ná nó cothrom le 0.3dB |
